PE plastic rigid flat net machine

plastic flat net machine
I plant specializing in the production of plastic flat net machine, designed and manufactured by our factory. Respectively spiral die and bearing rotary die extrusion two methods can produce a variety of uses of plastic flat net.

Hard plastic flat net, the "universal network," said its purpose very broad. Applications are very common in foreign countries, it is rapidly expanding in domestic applications. Now widely used in poultry and furniture manufacturing. Netted do chicken, bottom net, can effectively prevent chicken empyema disease, lameness disease. Used as a "Simmons" lining, can improve quality of their products. Into two, with the promotion and market development of products, a variety of engineering network (geonet) is developing rapidly, it has been successfully used in many projects, such as gray soft foundation treatment in highway construction, power plant dam engineering, hydraulic engineering, slope protection. In the desert sand-fixing artificial turf in areas such as plant, we have been doing experiments, and achieved good results, and has broad application prospects / more value to mention that having SPJ-2500 plastic net unit, in the design process, learn from foreign advanced experience reasonable design, smooth operation, with the production capacity, stable quality, easy operation and long service life. And is responsible for equipment installation, serious and responsible personnel training, warranty period, the outer shelf life long paid services to users.



roduction Introduction

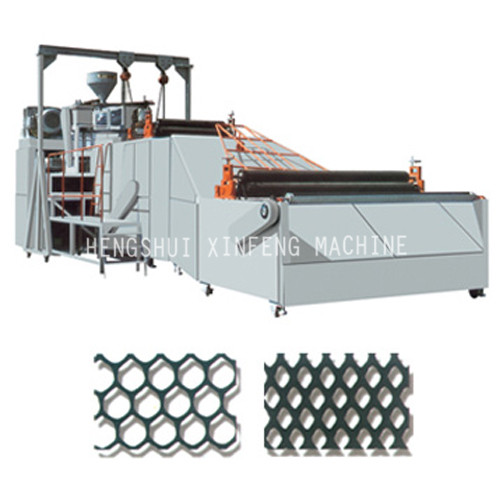

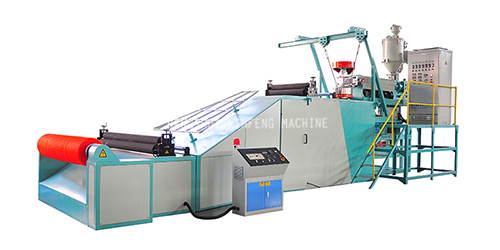

The machine is special equipment to produce plastic hard flat net with PE material and many kinds of nets of different structure and type by changing die and sizing device. All kinds of plastic hard flat nets produced by the machine are widely used in interlayer of bed, dyke coast resistance, strengthening roadbed, plant bracket, mine roof, breed aquatics, and so on. So it is also called versatile net.

Model

XF-YZW65P

XF-YZW65H

XF-YZW90

XF-YZW120

XF-YZW150

Extruder



Ø65/25

Ø65/28

Ø90/25

Ø120/25

Ø150/25

Screw speed

r/min

5-40

5-40

5-30

5-25

5-20

Width of product

mm

2000

2000

2500

3000

4000

Installed capacity (approx)

KW

50

60

86

180

220

Dimensions (L×W×H)(approx)

m

8.6×2.9×3.4

9.6×2.9×3.4

12×3.1×3.5

16×3.8×4.2

18×5.2×4.8

Total weight (approx)

T

4

5

6

8

10
