Hydraulic Gabion Mesh Machine

Introduction of Gabion mesh production line:
Hydraulic gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
The Gabion Mesh Machine can provide gabion mesh products for various kinds of construction items. The gabion products are commonly used to drain water course to protect and support roads, railroads, airports and residential areas, for coastal protection, build retaining walls, river bank protections, weirs, gabion boxes mattresses, etc.
Characteristics of hydraulic gabion mesh machine:
1. Lower noise compare with the mechanical gabion mesh machine
2. Speed is 20% faster compare with the mechanical gabion mesh machine

3. Easy to operate



Max. netting width

4m

Mesh size

100*120mm, 80*100mm, or according to your order

Max. galvanized wire dia.

3.2mm

Max. PVC wire dia.

4mm

Power

22kw

Max. Output

234 M to 264 M / Hour

Weight (approx):

16 Ton

Automatic Stop System *

Included

Overall size

7200*1400*2400mm

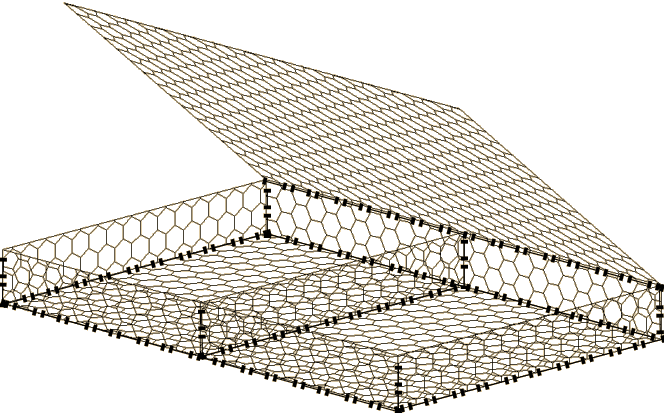

The finished products (Gabion mattress):
