Double Barbed Wire Machinery

Double Barbed Wire Machine
barbed steel wire machine,barbed wire machine,barbed wire making machine, fully automatic barbed wire machine
1 Uses and Characteristics
The machine is mainly suitable for producing all kinds of stocks thorn steel wire, the materials of products should accord with GB/T343-94 standard requirement< the common usage of hot-dipped galvanized low carbon steel wire >. The products are widely used in national defense, railway, highway, agriculture forming etc profession.

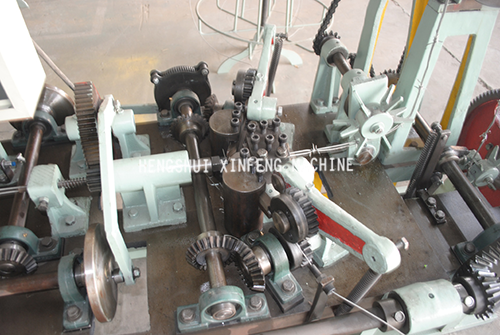

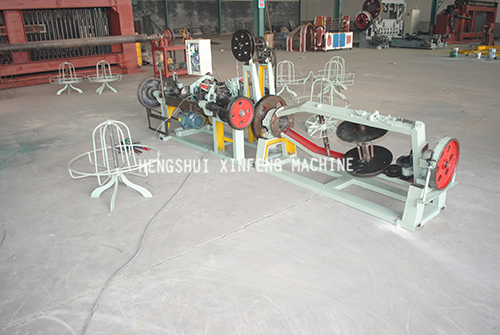

XF-A  type barbed steel wire is connected by circle wire and received wire and has four silk plates. All parts work coordinately, move steady, operate rumble and reliable. It is the only equipment of producing barbed steel wire at home at present.





2  the main parameter
The main parameter of XF-A barbed steel wire machine

project

unit

basic parameter

electric motor

type

 Y100L2-4

electric motor

KW

3

The circle of main rorating axis

t/min

402

pulling rope speed

t/min

470

the speed of  pulling rope

t/min

134

Rotational speed of receiving the rope and disc

t/min

30-255

the part of the main engine

mm

1900*1300*980

the part of receiving rope and twist

mm

1800*750*750

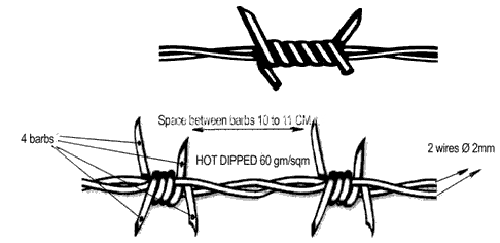

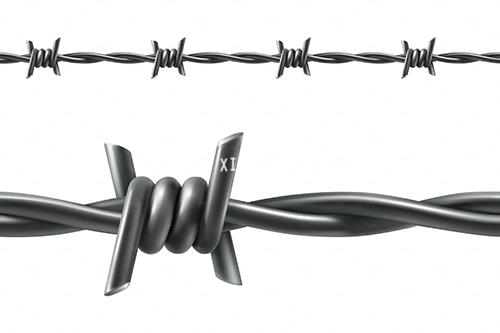

2. the specific of the barbed steel wire

project

unit

basic parameter

the pun cature distance

mm

76(3寸) 102(4寸)

the twist number

a

4

the diameter of sock wire

mm

2.0-2.8

barbed of diameter

mm

1.8-2.2
