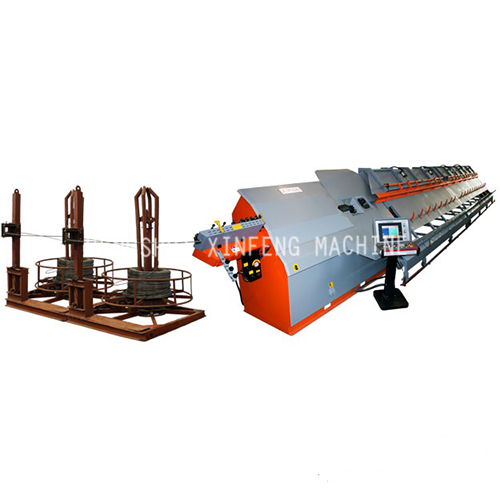

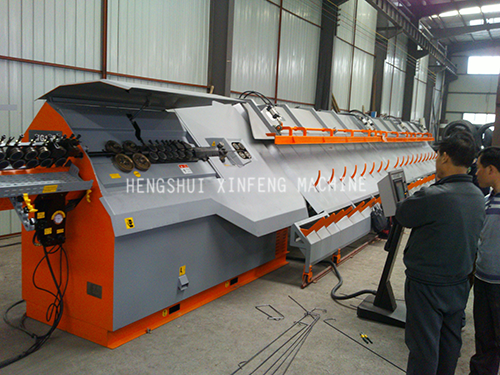

CNC automatic rebar bending machine

CNC automatic rebar bending machine;rebar bending machine

specifications
CNC Automatic  rebar bending machine
1 Mitsubishi PLC
2 Double wire
3 Servo motor

4 Unit of Straighten,bend & cut to length



Technical parameters:

Single wire

Φ5 – 12 [mm]

Double wire

Φ5 – 10 [mm]

Max bending angle

180°

Max bending speed

1100 [°/sec]

Max pulling speed

110 – 130 [m/min]

Max length of the stirrup side

1300 [mm]

Min length of the stirrup side

60 – 90 [mm]

Length Tolerance

±1 [mm]

Bending Tolerance

±1°

Average air-compressed

6 [l/min]

Average electric power consumption

5 – 8 [KW/h]

Labeled electric power

31.5 [KW] (include air compressor)

Voltage

380 [V] – 50 [Hz]

Overall machine weight

4,700 [Kg]

Overall dimension

9(L)×3(W)×3(H)

Bending direction

Bi-direction
